Upgraded 42002-0007S Pool Heater Control Board Kit Fit for Pentair Sta-Rite/Pentair Sta-Rite/MasterTemp 400/300/250, 472610Z Switch Pad 461105 Replacement Control Board

Parameter Information: Product Name: 472610Z Switch Pad 461105 Replacement Control Board Control Module Assembly Place of Application: - Fit for Pentair MasterTemp 200, 250, 300, and 400 models. - Fit for Pentair Sta-Rite Max-E-Therm SR200NA, SR333NA, SR400NA, SR200HD, SR333HD, and SR400HD models. - Fit for Pentair Sta-Rite all NA and LP series pool and spa heater electrical systems. Package Include: 1 x Control Board

• Product Function: This control board addresses common heater issues like failure to start, unresponsive displays, slow heating, and temperature regulation problems. It restores stable heating performance and accurate temperature control for your pool or spa
• Precise Fit: This kit is fit for Pentair MasterTemp 200, 250, 300, and 400 models. Fit for Sta-Rite Max-E-Therm SR200NA, SR333NA, SR400NA, SR200HD, SR333HD, and SR400HD models. Also compatible with all NA and LP series pool and spa heater electrical systems
• Replacement Part Numbers: The kit includes the 42002-0007S control board and the 472610Z membrane pad. Confirm part numbers match your equipment before installation

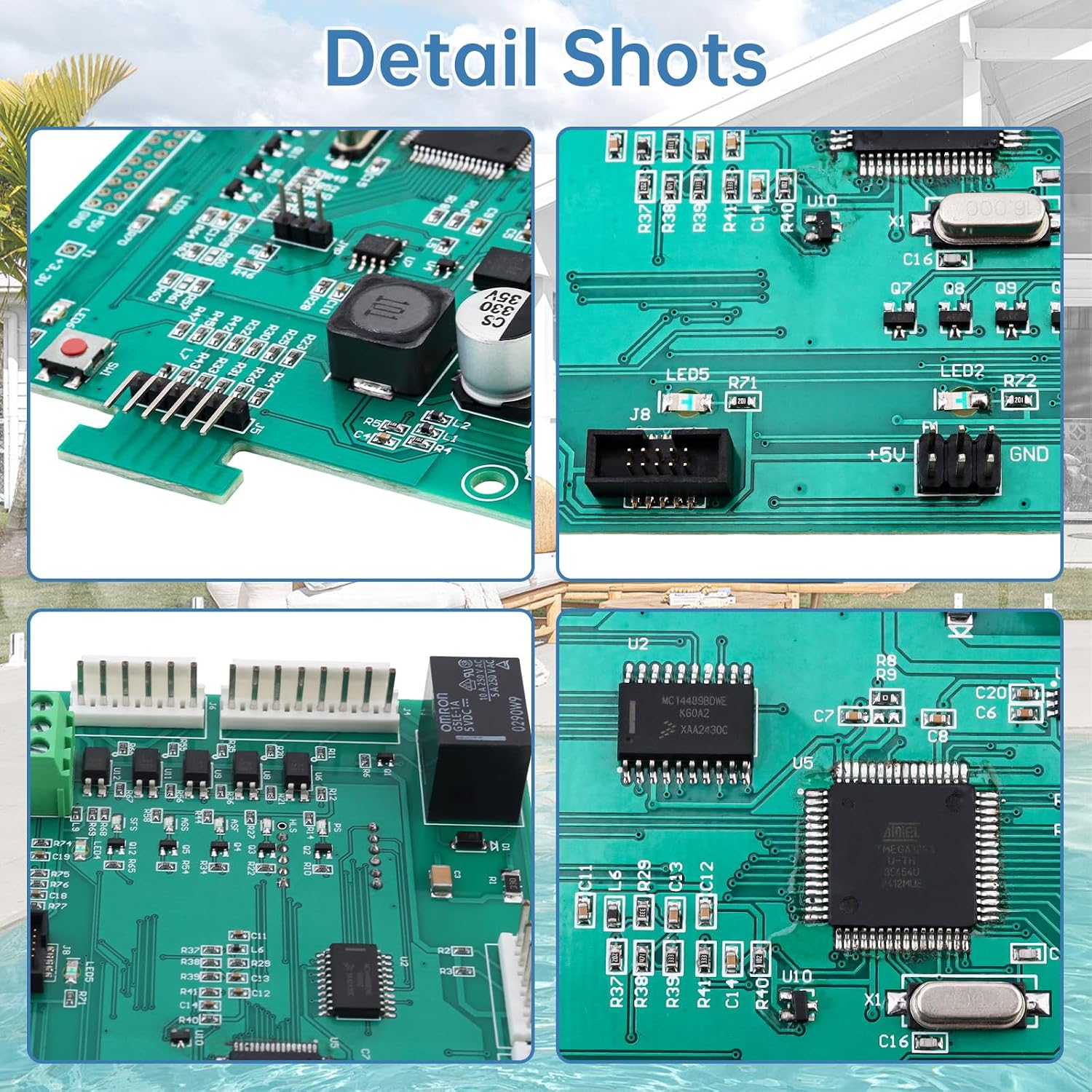

• Product Highlights: Constructed with FR-2 copper clad laminate and upgraded solid-state capacitors. Assembled with precision soldering and coated with an SR waterproof layer for insulation and moisture-resistance. The enhanced regulated power module, with premium filter capacitors and a U.S sourced LM2576HVS power chip, delivers consistent DC power. A high-grade optocoupler enables swift output control response
• Sturdy Build with Intuitive Controls: The control board itself is moisture-resistant, prevents electrical leaks. The membrane pad sits snugly on top, adding an extra layer of protection, which makes the whole system feel safer. The pad has a highly transparent surface with distinctly labeled buttons for Temperature Control, Service Heater, Service System, Heating, Spa On, Pool On, and Heater Off, making all operations straightforward and easy to understand immediately
• Installation: Turn off all power to the heater and open the top cover. 2) Remove the four screws securing the old board. Detach the membrane pad and disconnect all wire connectors. 3) Secure the new board, reconnect all wires and the pad. 4) Peel off the old membrane pad. Connect the new pad to the new panel, then adhere it to the original (cleaned) position on the chassis. 5) After checking connections, restore power to the heater
